WBT Machine & Tool Ltd.

Late Model & Multi-Axis CNC Machining Facility!

FEATURING: OKUMA (2022) LB3000EXII SPACE TURN high performance opposed spindle CNC live milling and turning center, EDGE TECHNOLOGIES (2022) REBEL 102 CNC bar feeder, DECKEL MAHO (2009) DMU 80 P duoBLOCK 5 axis high speed CNC universal machining center, MAZAK (2017) VC-500A/5X 5 axis high speed CNC vertical machining center, AWEA (2005) SP3016HSS bridge type vertical machining center, (3) SWI TRAK (2012 - 2014) LPM CNC vertical machining centers, SWI DPMV3 CNC vertical mill, TRAK TRL 1840 CSS CNC lathe, MICROWEILY TY2060 gap bed engine lathe, KBC 3VS vertical mill, CHEVALIER FSG-3A1224H hydraulic surface grinder, CHEVALIER 618M surface grinder, GRINDIX UH 300/650 universal cylindrical grinder, TECHNOIMPEX 6’ radial arm drill, HYDMECH S-20 SERIES II horizontal bandsaw, ER MAIER KM1012 vertical band saw, GARDNER DENVER APEX air compressor, CLARK GCX25 LPG forklift and MUCH MORE!

HIGH PERFORMANCE OPPOSED SPINDLE CNC LIVE MILLING & TURNING CENTER

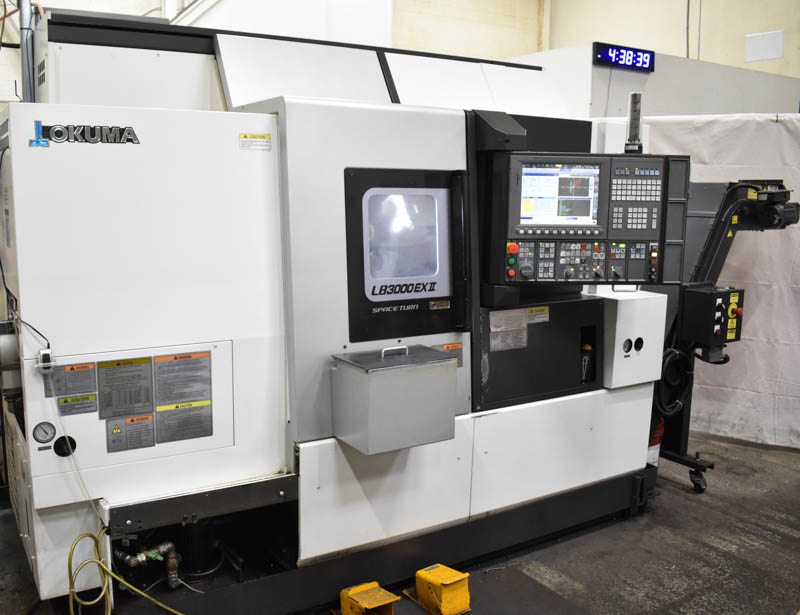

• OKUMA (2022) LB3000EXII SPACE TURN high performance single turret, synchronized opposed spindle CNC live milling & turning center with OKUMA 0SP-P300 CNC control, KITAGAWA BR10 10” 3-jaw hydraulic main spindle chuck, HAINBUCH collet sub spindle chuck, 13.39” max turning diameter, 22.83” max swing over saddle, travels X – 10.24”, Y - 4.53”(+2.76″ to -1.77″), Z – 20.07”, W - , C-360 degrees on both spindles, 3.15” spindle bore, 12 station ATC with live milling,  main spindle speeds to 5,000RPM, 30HP main spindle motor, sub spindle speeds to 6,000RPM, 15HP spindle motor, coolant, MAYFRAN MT10 chip conveyor, tool checker arm, parts catcher, S/N:247647
• EDGE TECHNOLOGIES (2022) REBEL 102 CNC bar feeder with DELTA PLC control S/N: T1202231872

HIGH SPEED 5-AXIS CNC MACHINING CENTERS

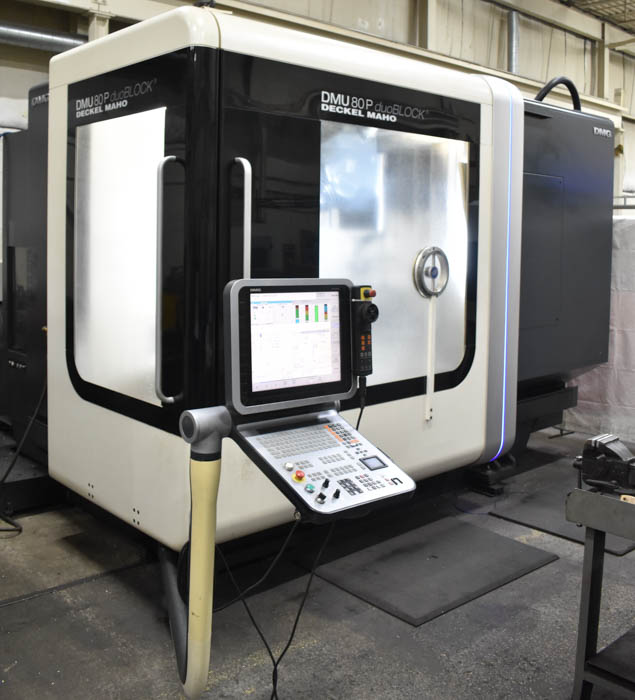

• DECKEL MAHO (2009) DMU 80 P duoBLOCK 5 axis high speed CNC universal machining center with HEIDENHEIN ERGOLINE ITNC 530 CNC control, 35.5” X 27.5” T-slot table with speeds to 30RPM, 3,086LBS table capacity, travels X – 31.49, Y - 31.49, Z – 31.49”, C – 360°, B +/- 180°, spindle speeds to 18,000RPM, 24.2HP spindle motor, CAT40 spindle taper, 40 station ATC, convex machining capable, high pressure through spindle coolant, coolant filtration, spindle chiller, chip conveyor, approx. 21,410 cutting hours (recorded on meter at the time of listing), S/N: 11440003913

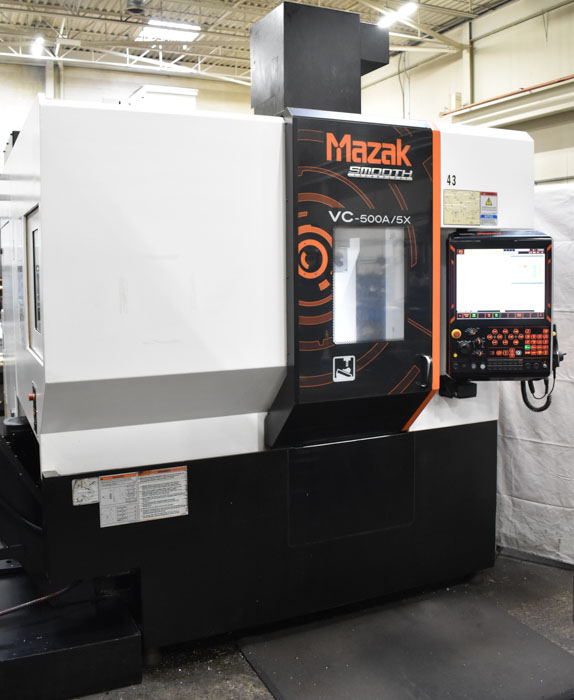

• MAZAK (2017) VC-500A/5X 5-axis high speed CNC vertical machining center with MAZATROL SMOOTHX CNC control, 19.68” diameter trunnion table, 440LBS table capacity, travels X – 21.85”, Y – 19.88”, Z – 20.08”, B +/-220°, C-360°, spindle speeds to 12,000RPM, 25HP spindle drive, CAT40 spindle taper, 30 station ATC, dual probing kit, tool radius compensation, 213PSI hi-pressure through spindle coolant, spindle chiller, workpiece air blast, LNS turbo micro hinge 250 chip conveyor, approx. 6,565 cutting hours (recorded on meter at the time of listing), S/N: 280011

HIGH SPEED BRIDGE TYPE CNC VERTICAL MACHINING CENTER

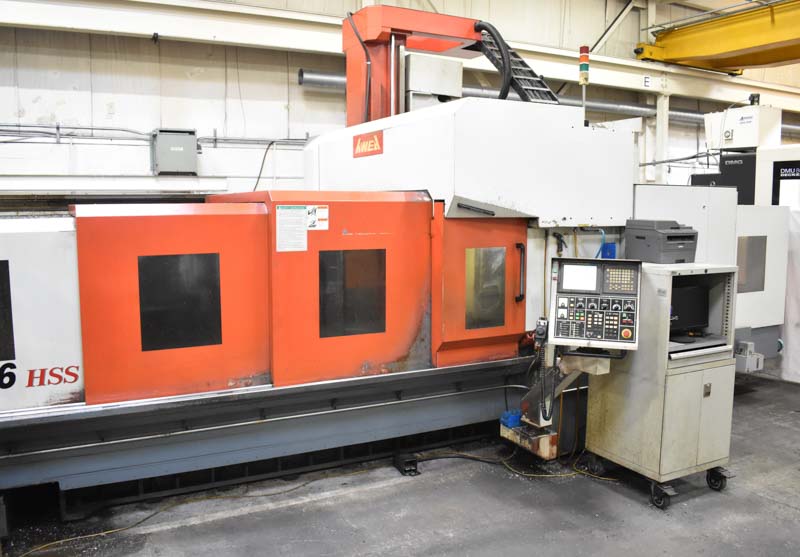

• AWEA (2005) SP3016HSS bridge type high speed CNC vertical machining center with FANUC 18IMB CNC control, 128” X 59” T-slot table, 22,000LBS max table capacity, 39.4” max distance spindle nose to table top, travels X – 118.1”, Y – 63”, Z – 30”, speeds to 15,000RPM, CAT40 spindle taper,19 station ATC, coolant, chip conveyor, S/N: 4739

CNC VERTICAL MACHINING CENTERS

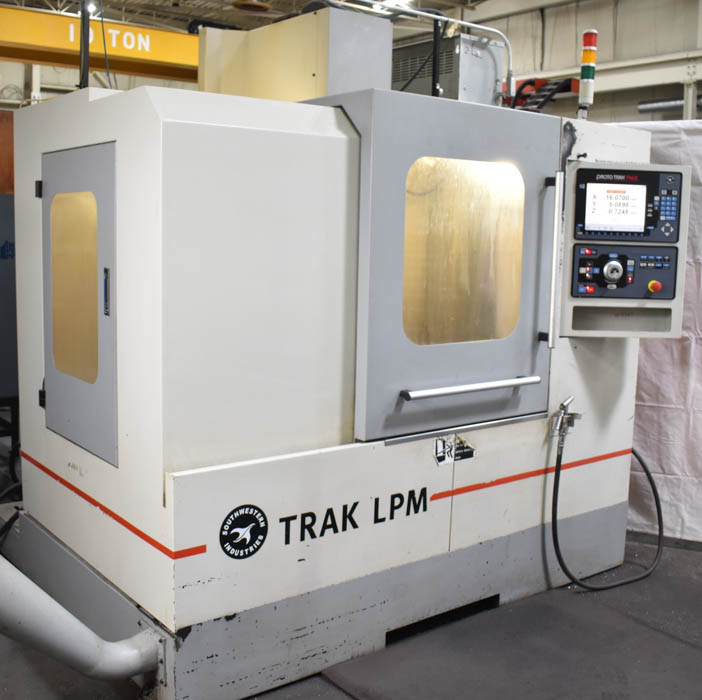

• SWI TRAK (2014) LPM CNC vertical machining center with PROTRAK PMX CNC control, 35.38” X 19.63” T-slot table, 1,000LBS table capacity, travels X – 31”, Y – 18.5”, Z – 21”, speeds to 8000RPM, CAT40 spindle taper, 16 station ATC, coolant, chip auger, 4th axis ready S/N: 153DJ004
• SWI TRAK (2012) LPM CNC vertical machining center with PROTRAK PMX CNC control, 35.38” X 19.63” T-slot table, 1,000LBS table capacity, travels X – 31”, Y – 18.5”, Z – 21”, speeds to 8000RPM, CAT40 spindle taper, 16 station ATC, coolant, chip auger, 4th axis ready S/N: 122DJ446223
• SWI TRAK (2012) LPM CNC vertical machining center with PROTRAK PMX CNC control, 35.38” X 19.63” T-slot table, 1,000LBS table capacity, travels X – 31”, Y – 18.5”, Z – 21”, speeds to 8000RPM, CAT40 spindle taper, 16 station ATC, coolant, chip auger S/N: 141DJ407

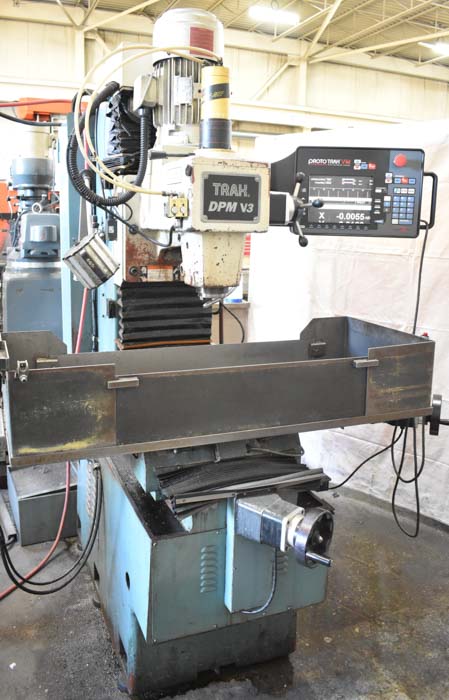

• SWI DPMV3 CNC vertical mill with PROTRAK VM CNC control, 48” X 10” t-slot table, 5HP, MAXI TORQUE-RITE power draw bar S/N: 041AV12472
• SWI (2014) 28060 4th axis with 8” 3-jaw chuck, tailstock, S/N: 1008

CNC LATHE

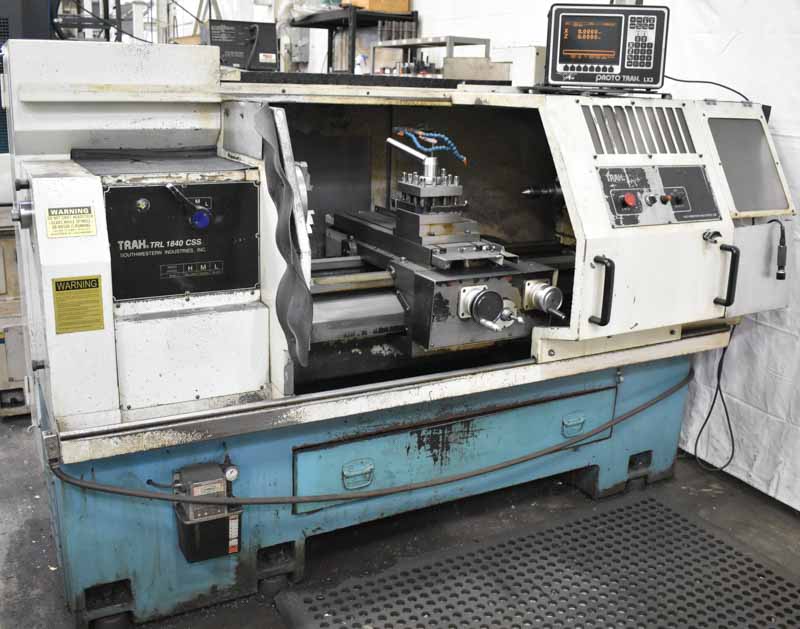

• TRAK TRL 1840 CSS CNC lathe with PROTOTRAK LX3 CNC control, 10” 3-jaw chuck, 18” max turning diameter, 42” between centers, 3” bore, speeds to 2,500RPM, coolant, steady rest S/N: 04BC10684

TOOL PRE-SETTER

• SECO EPB EASY SHRINK 20 tool pre-setter S/N: 0141340

CONVENTIONAL MACHINE TOOLS

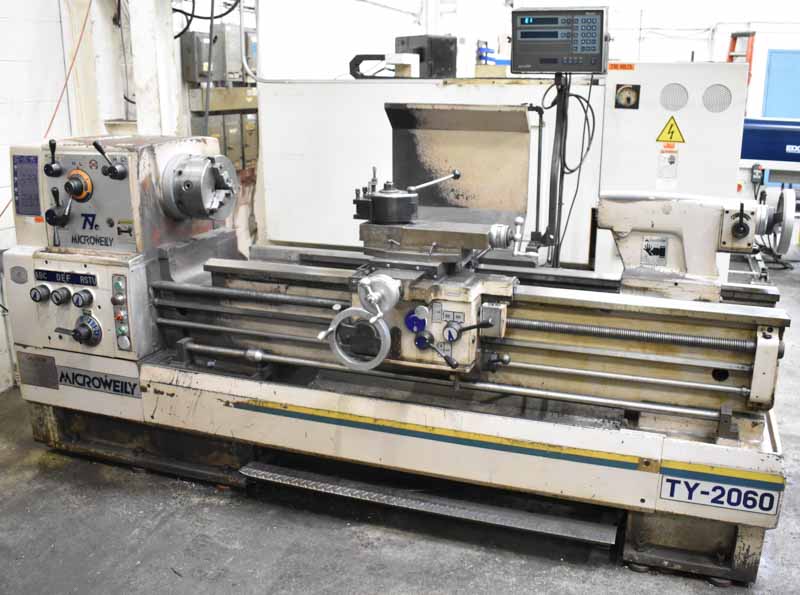

• MICROWEILY TY2060 gap bed engine lathe with 10” 3-jaw chuck, 25” swing over bed, 28” swing in the gap, 62” between centers, 4” bore, speeds to 1,550RPM, ACCURITE 2-axis DRO, coolant, steady rest S/N: 0B8605-001

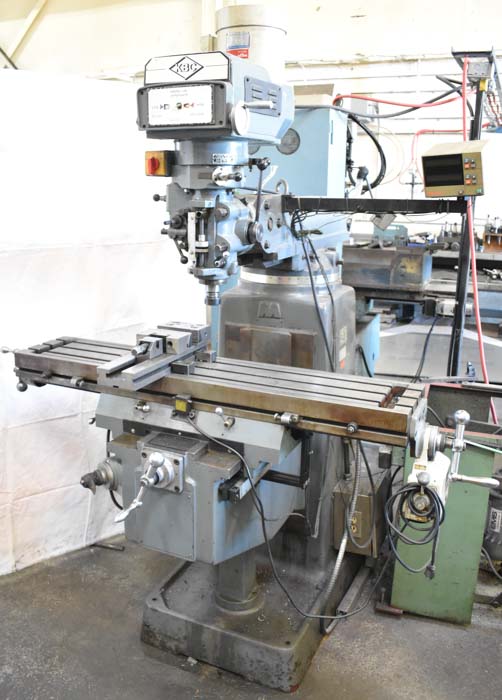

• KBC 3VS vertical mill with 50” X 10” t-slot table, speeds to 4,200RPM, 3HP, MITUTOYO 2-axis DRO, S/N: 330290

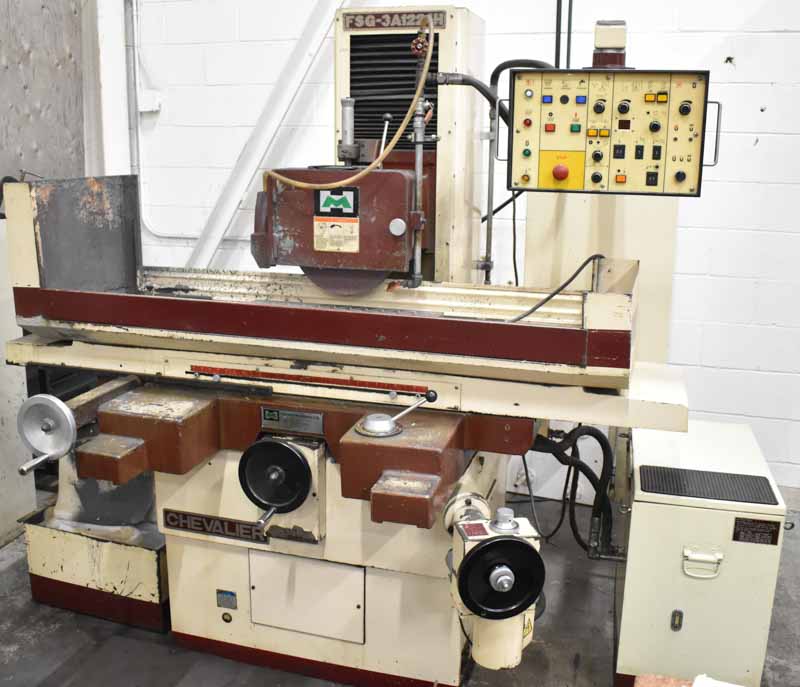

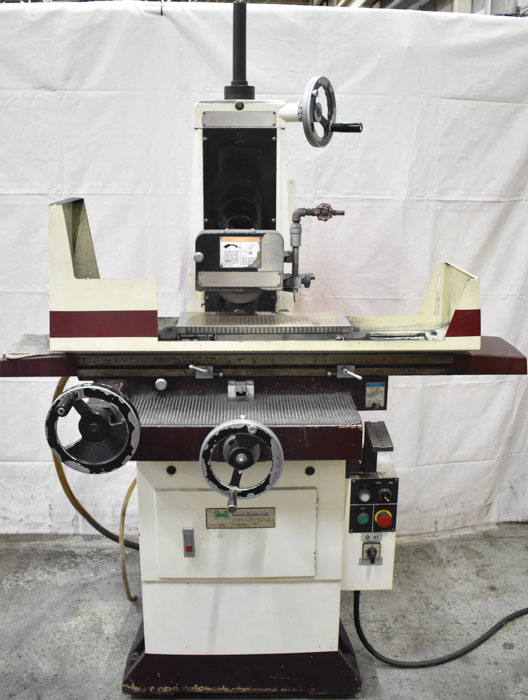

• CHEVALIER FSG-3A1224H hydraulic surface grinder with PLC control, WALKER HAGOU 24” X 12” magnetic chuck, 14” grinding wheel, incremental down feed, coolant S/N: P3828005
• CHEVALIER 618M surface grinder with WALKER HAGOU 18” X 6” magnetic chuck, 6” wheel, incremental down feed, S/N: A3892040

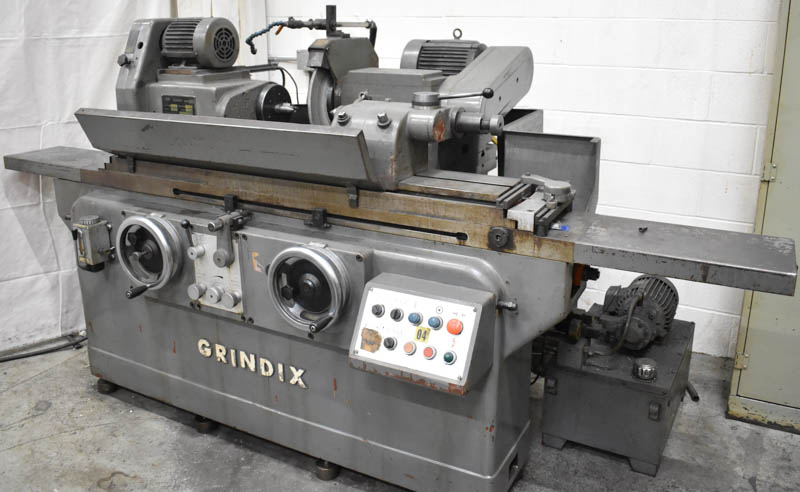

• GRINDIX UH 300/650 universal cylindrical grinder with 12” swing, 25.5” between centers, 14” X 1.5” grinding wheel, speeds to 1,600RPM, 0–30 degree head swivel, coolant, S/N: G1C-40027

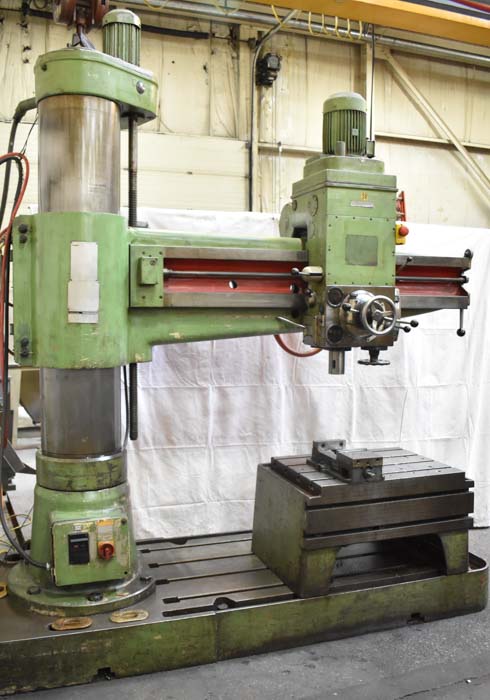

• TECHNOIMPEX 6’ radial arm drill with speeds to 1,600RPM, MT, 56” under quill, 24” X 18” X 34” t-slot box table (may be offered separately), S/N: 12579

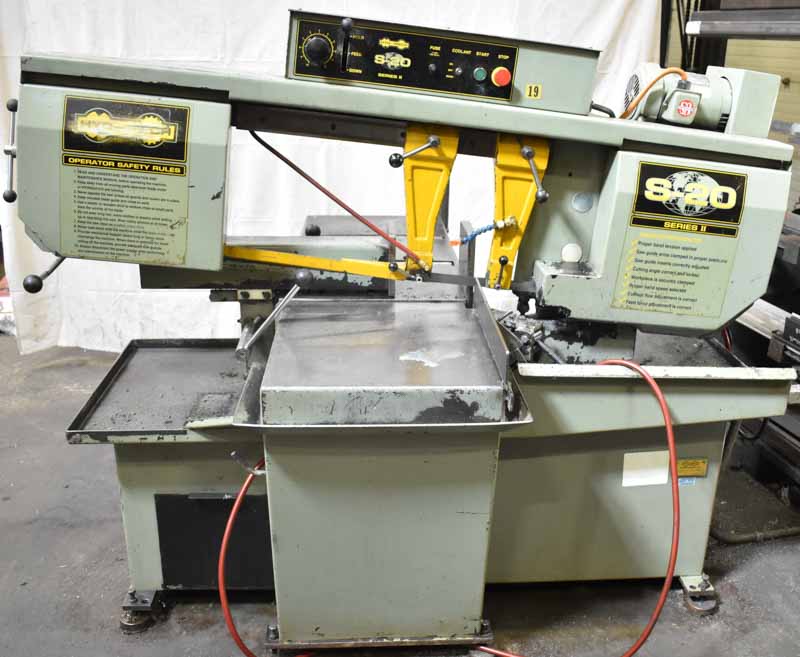

• HYDMECH S-20 SERIES II horizontal band saw with 13” X 18” max cutting capacity, 2HP, hydraulic vise, coolant, S/N: 60897041

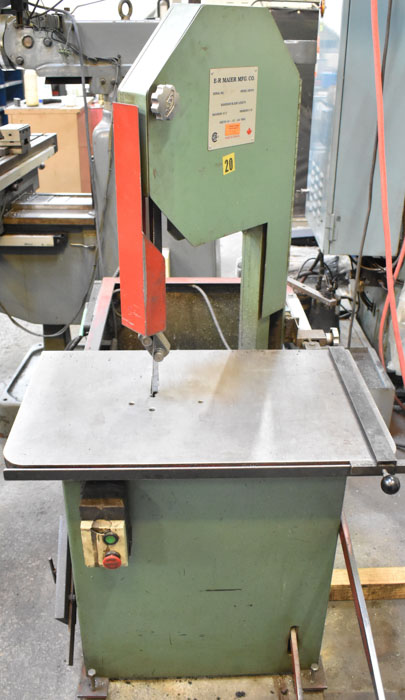

• ER MAIER KM1012 vertical band saw with 30” X 18” table, 7” throat, S/N: 98499

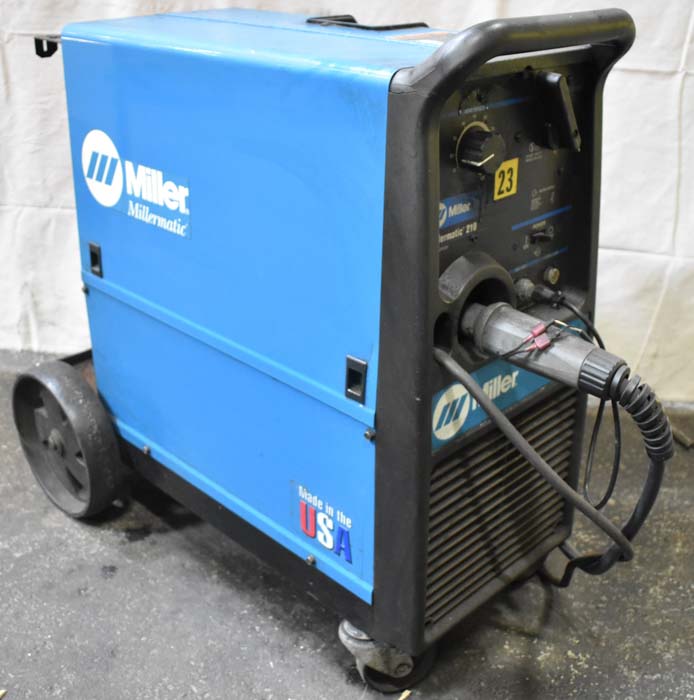

• MILLER MILLERMATIC 210 MIG welder with cables and gun, S/N: LE051885
• BRADY BB-75XLD sand blast cabinet, S/N: N/A

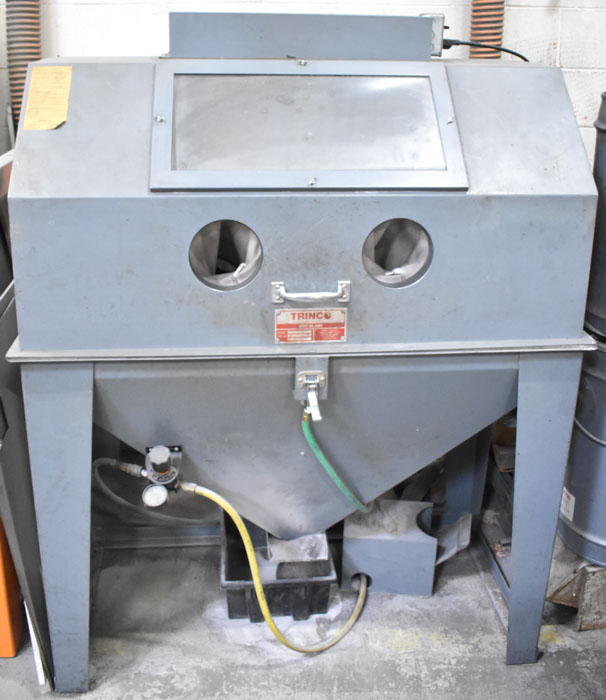

• TRINCO 48X24SL sand blast cabinet, S/N: 77300
• TRINCO 40X40FT2 sand blast cabinet, S/N: 33507

COORDINATE MEASURING MACHINES

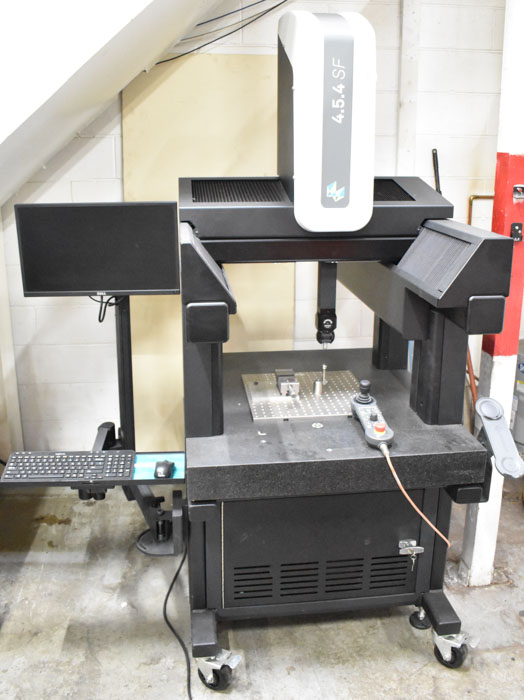

• HEXAGON (2018) SF 4.5.4 CMM machine with WINDOWS/PC based control, measuring envelope X - 14”, Y – 20.2”, Z - 13.9”, 38” x 32” granite table, RENISHAW PH10T PLUS touch probe, NJB001 pendant control, S/N: 1218-8096

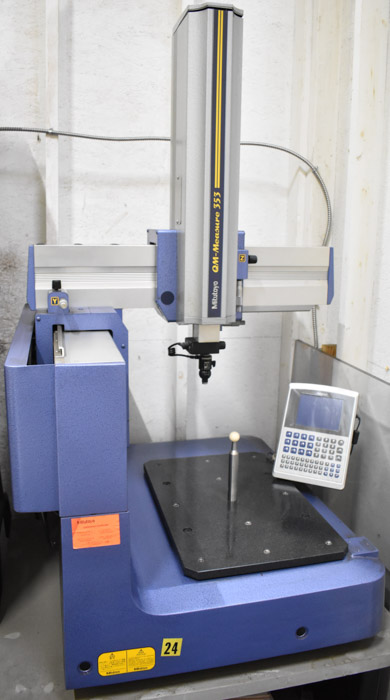

• MITUTOYO QM MEASURE CMM machine with MITUTOYO control, measuring envelope X – 10”, Y – 21”, Z – 13”, 22.5” X 14.5” granite table, RENISHAW MH20 touch probe, S/N: RD000185

COMPRESSOR

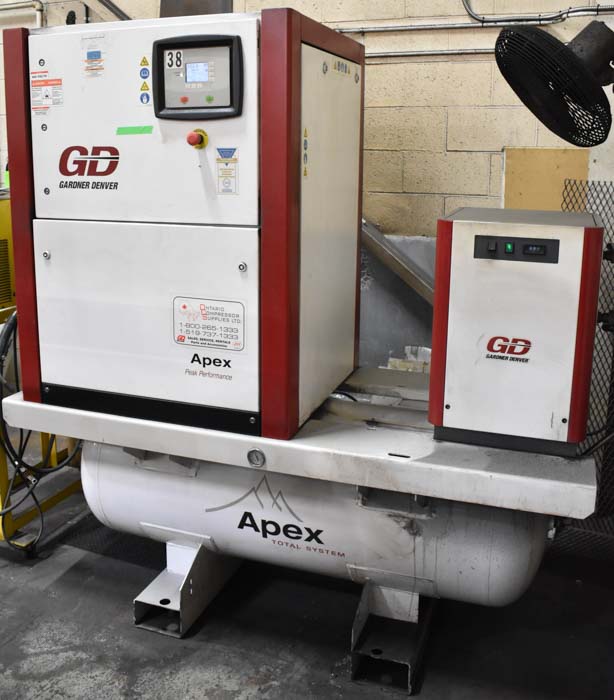

• GARDNER DENVER APEX air compressor with GARDNER DENVER PLC control, GARDNER DENVER built in refrigerated air dryer, 34,965HRS (recorded on meter at time of listing), S/N: N/A

ROLLING STOCK

• CLARK GCX25 LPG forklift with 4150LBS capacity, 188” max reach, 3 stage high visibility mast, side shift, indoor cushion tires, 1851HRS (recorded on meter at time of listing) S/N: GX23000718730

ALSO:

• Machine tool accessories consisting of precision machine vises, 10+ KIRK / GS machine vises, standard machine vises, indexing heads, rotary tables, angle plates, set up blocks, lathe chucks, chuck jaws, HUGE QUANTITY of CAT40 tool holders, perishable tooling including carbide insert boring bars, carbide insert face mills, carbide and HSS endmills, reamers, drills, cut off wheels, inspection equipment consisting of MITUTOYO height gauges, inside micrometers, outside micrometers, bore gauges, block gauges, granite surface plates, pedestal grinders, shop presses, tool cutter grinders 10+ tool cabinets, 10+ work benches and MUCH MORE!
