Metech Precision Machining Inc.

Complete CNC Machining Facility

FEATURING: TOSHIBA SHIBAURA BMC50 twin pallet horizontal machining center; KITAMURA K100 CNC gantry type milling machine; JOHNSON ATC50 CNC vertical machining center; NAKAMURA TOME TMC-30 CNC turning center; MAZAK QUICKTURN-15 cnc turning center; HARDINGE SG42 CNC turning center; TOS SN63C gap bed engine lathe; FORWARD gap bed engine lathe; PBM universal mill; FIRST LC185SX vertical mill; BEMATO 3VM vertical mill; MAS 6’ radial arm drill; MAS VR2 3’ radial arm drill; SUNNEN MBB1660C honing machine; FREEPORT 5GS surface grinder; STARRET RAPID CHECK CMM; DEVILBISS 15hp air compressor; CLARK C-500 LPG 7425LBS capacity forklift; (5) + drill presses, (5) + pedestal and bench grinders, machine vises, lathe chucks; Large quantities of perishable tooling consisting of carbide insert cutters, carbide insert boring bars, endmills, drills and taps; Inspection equipment including micrometers, verniers, bore gauges; Factory support equipment comprising of die carts and pump trucks, tool benches, tool boxes and more!

Rigging and Removal Details

THE EXCLUSIVE MACHINERY AND EQUIPMENT RIGGER FOR THIS SALE IS:
National Rigging
Darren Chapman
905 704 9011
[email protected]

*All assets must be removed no later than Thursday, June 12. For everyone’s safety, removal at this site is conducted strictly by appointment over a 4-day period. All buyers must contact Darren Chapman [email protected] to set their pick-up appointments upon payment in full. Posted prices are valid only on the scheduled removal days. Additional charges may incur if pickup is outside of the scheduled removal days. No walk-in removal will be permitted on this site. Buyers and/or drivers without an appointment or outside of their allotted time slot will be turned away.

Trucking and transport services, including cross-border logistics, are available through Fuze Logistics Inc. Please contact Chris Tan for a firm quote or any questions regarding transportation.

Fuze Logistics Services Inc.
Chris Tan
941-702-3310
[email protected]

CNC TWIN PALLET HORIZONTAL MACHINING CENTER

• TOSHIBA SHIBAURA BMC-50 twin pallet horizontal machining center with TOSNUC CNC control, (2) 20” x 20” t-slot pallets, travels X – 24.8”, Y – 22”, Z - 22”, B- 360 degree positioning in 90 degree increments, spindle speeds to 6000RPM, 7.5HP, CAT50 spindle taper, 32 station ATC, coolant, chip conveyor, S/N: 211201

CNC VERTICAL GANTRY TYPE MILLING MACHINE

• KITAMURA K100 vertical gantry type CNC milling machine with KITAMURA FANUC 6M CNC control, 60” X 40” t-slot table, travels X – 59”, Y – 39.3”, Z – 9.8”, speeds to 3400RPM, 10HP, CAT40 spindle taper, 16 station ATC, coolant S/N: 7030

CNC VERTICAL MACHINING CENTER

• JOHNFORD / ISO-MILL ATC-50 CNC vertical machining center with FANUC SERIES 0-M CNC control, 25” x 14” t-slot table, travels X - 19.7”, Y - 13.8”, Z - 15.7”, speeds to 6000RPM, 10HP, BT40 spindle taper, 16 station ATC, coolant S/N: VN-9530

CNC TURNING CENTERS

• HARDINGE SG-42 CNC turning center with GE FANUC SERIES 18T CNC control, 9.5” max turning diameter, 13.9” max turning length, travels X – 5.3”, Z – 13.9”, 12 station turret, collet chuck, spindle speeds to 4400RPM, 15HP, spindle bore, parts catch, coolant, chip conveyor S/N: 5GA-1240-B
• NAKAMURA TOME TMC-30 CNC turning center with FANUC CNC control,12.99” max turning diameter, 21.65” max turning length, travels X - 8.46”, Z - 22.83”,10 station turret, 10” 4-jaw chuck, speeds to 3500RPM, 25HP, coolant S/N: A31708
• MAZAK QUICK TURN-15 CNC turning center with MAZATROL CAM T-2 CNC control, 10” max turning diameter, 20” max turning length, travels X – 6.1”, Z – 20”, 8 station turret, collet chuck, speeds to 3600RPM, 20HP, coolant S/N: N/A

INSPECTION EQUIPMENT

• STARRETT rapid check gantry type CMM with 54” X 38” granite surface plate, RENISHAW MIP touch probe S/N: N/A
• MITUTOYO 612TS optical comparator S/N: N/A

CONVENTIONAL EQUIPMENT

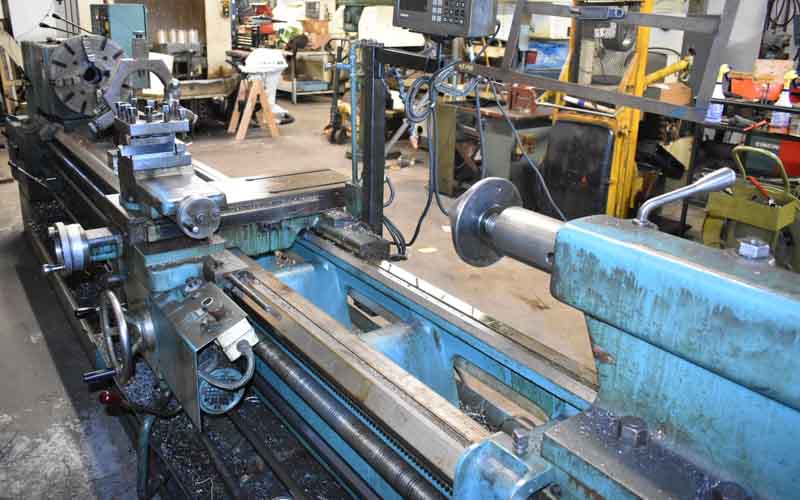

• TOS SN63 gap bed engine lathe with 28” swing over bed, 32” swing in the gap, 14’ in between centers, 3” bore, 18” 4 jaw chuck, speeds to 1000RPM S/N: 076340960233

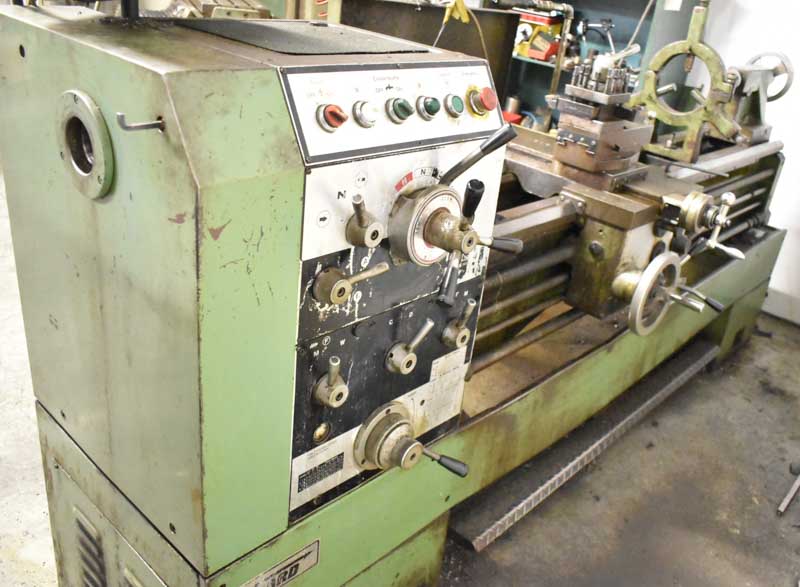

• FORWARD gap bed engine lathe with 18” swing over bed, 24” swing in the gap, 58” in between centers, 1” bore, speeds to 1800RPM, HEIDENHAIN 2 axis DRO
• FIRST LC185SX vertical mill with 50” X 10” t-slot table, speeds to 4500RPM,4Hp, HEIDENHAIN 2 axis DRO, power draw bar S/N: 61202040
• BEMATO 3VM vertical mill with 50” X 10” t-slot table, speeds to 4200RPM, 3HP, MITUTOYO 2 axis DRO, KURT power draw bar, ALIGN-X power traverse, S/N: 930713
• PBM universal mill with 43” X 9” t-slot table, speeds to 3400RPM, 2HP, MITUTOYO 2-axis DRO, S/N: N/A
• MAS Z35 6’ radial arm drill with speeds to 1800 RPM, 24” X 24” X 20” t-slot box table S/N: 730600
• MAS VR-2 3’ radial arm drill with speeds to 1750 RPM, 21” X 16” X 10” t-slot box table S/N: 4180
• SUNNEN MBB1660C honing machine S/N: 80080
• FREEPORT 5GS 185 surface grinder with 6” grinding disc, 2HP and 18” x 6” magnetic plate S/N: 3111-2
• CINCINATTI tool and cutter grinder with 6” disc, .5HP S/N: N/A
• ELLIOT horizontal band saw with 24” throat, 1HP S/N: N/A
• ER MAIER KM1012 horizontal band saw with 8” throat S/N: N/A
• OSTER 552 pipe threader S/N: N/A
• FORWARD TT pedestal type drill press S/N: 9423
• MASTERCRAFT pedestal type drill press S/N: N/A
• KING 706C 6” combination belt sander S/N: N/A

FACTORY SUPPORT EQUIPMENT

• CLARK C-500 580 LPG forklift with 7525LBS max capacity, 135” max reach S/N: 685-4-1330
• MOBILE TRUCKS die cart S/N: N/A
• BIG JOE die cart S/N: N/A

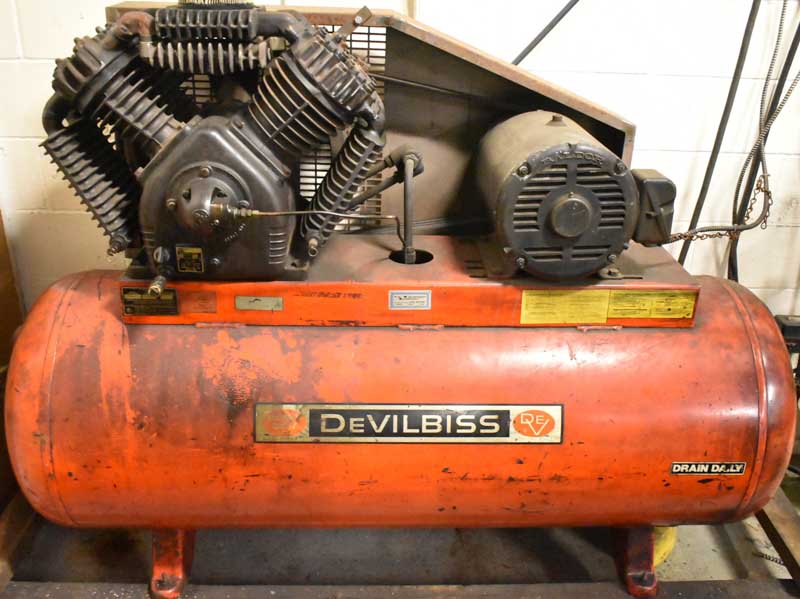

• DEVILBISS 15HP piston type air compressor S/N: N/A

ALSO:

• LARGE QUANTITY OF machine tool accessories such as CAT40 and BT40 tool holders, machine vises, indexing heads, lathe chucks, angle plates, perishable tooling comprising of endmills, reamers, drills, carbide insert boring bars, face mills, HUGE quantity of name brand inspection equipment consisting of inside/outside micrometers, vernier calipers, height gauges, gauge blocks, tool boxes, work benches, cabinets and MUCH MORE!
