Liberty Spring

Facility Closure

Rigging and Removal Details

THE EXCLUSIVE MACHINERY AND EQUIPMENT RIGGER FOR THIS SALE IS:
Redmond & Associates Industrial Machinery Movers
Blair Sleeper
(416) 881 - 0479
[email protected]

*All assets must be removed no later than Wednesday, August 27. For everyone’s safety, removal at this site is conducted strictly by appointment. Appointments must be made via Redmond & Associates Industrial Machinery Movers, contact Blair Sleeper at [email protected]  to set their pick-up appointments upon payment in full. Posted prices are valid only on the scheduled removal days. Additional charges may incur if pickup is outside of the scheduled removal days. No walk-in removal will be permitted on this site. Buyers and/or drivers without an appointment or outside of their allotted time slot will be turned away. No exceptions.

Trucking and transport services, including cross-border logistics, are available through Fuze Logistics Inc. Please contact Chris Tan for a firm quote or any questions regarding transportation.

Fuze Logistics Services Inc.
Chris Tan
941-702-3310
[email protected]

CNC SPRING COILING MACHINES

• ITAYA SX-30 CNC spring coiling machine with ITAYA SX SYSTEM V CNC control, 1.5MM-3.0MM max wire diameter, 24MM max spring diameter, 180MM max spring free length, straightener/feeder, compliment of tooling & accessories, 575V/3PH/60HZ, S/N 9135 (CI)
• HTC HTC-40-CNC CNC spring coiling machine with HTC-40 CNC control, 1.8MM-4.0MM max wire diameter, 50MM max spring diameter, compliment of tooling & accessories, 220V/1PH/60HZ, S/N 964006-4 (CI)
• WAFIOS FMU4 CNC servo spring coiling machine with WAFIOS CNC control, 1.8MM-4.0MM max wire diameter, compliment of spare parts & tooling, 575V/3PH/60HZ, S/N 2.2620.018 (CI)
• HERDON CSM-20 CNC spring coiling machine with HERDON CNC control, 0.4MM-2.6MM max wire capacity, servo straightener/feeder, auxiliary forming attachment, compliment of tooling & accessories, 220V/3PH/60HZ, S/N N/A (CI)

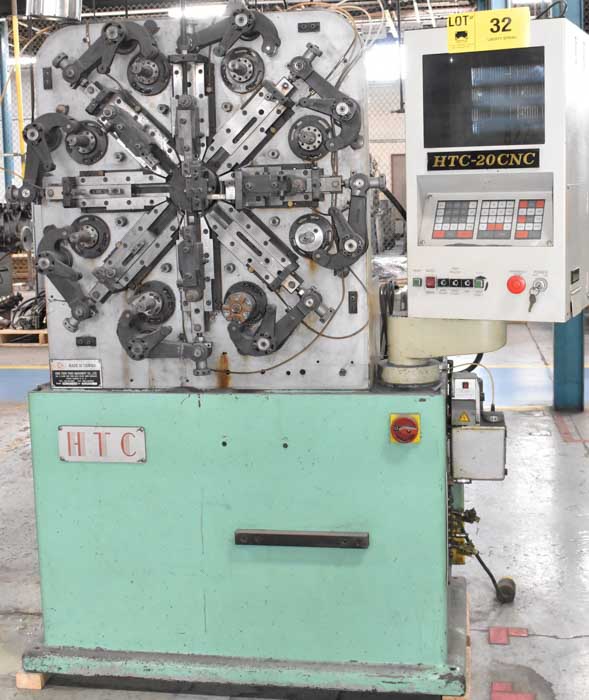

• (3) HTC HTC-20-CNC CNC spring coiling machines with HTC-20 CNC control, 0.6MM-2.0MM max wire diameter, 220V/3PH/60HZ, S/N 942022, 962025, 942021

CONVENTIONAL SPRING COILING MACHINES

• WAFIOS FS2 conventional compression spring coiling machine with max 0.8MM wire diameter capacity, 575V/3PH/60HZ, S/N 2.2052.191 (CI)
• (2) TORRINGTON W11A conventional spring coiling machines with 0.015"-0.072" max wire capacity, 1 9/16" max coil diameter, S/N 121472WS, 108669WS  (CI)
• WAFIOS FS3 conventional spring coiling machine with max 0.4MM-2.5MM wire diameter capacity, 40MM max coil diameter, 600V/3PH/60HZ, S/N 2 2055 062 (CI)
• HTC HTC-8-HS conventional spring coiling machine with 0.12MM-0.8MM max wire capacity, 20MM max coil diameter, S/N 960809HS (CI)
• (4) TORRINGTON W10A conventional spring coiling machines with 0.008"-0.28" max wire diameter, 0.875" max coil diameter, S/N 139332-WS, 139920-WS, 108449WS, 139350-WS
• SCHENKER FA-6S conventional spring coiling machine with 0.1MM-0.6MM wire capacity, 18MM max coil diameter, S/N 18192 (CI)
• (2) WAFIOS F0 2 conventional compression spring coiling machines with 0.1MM-0.5MM wire capacity, 5.0MM max coil diameter, S/N 2 2312 049, 2 2312 045
• WAFIOS FUD 41 conventional compression spring wire forming machine, S/N 2 2140 033 (CI)
• (2) TORRINGTON W-115A conventional spring coiling machines with 0.0317"-0.112" max wire capacity, 2 1/8" max coil diameter, S/N 106671WS, 108450WS
• TORRINGTON W-100A conventional spring coiling machine with 0.003"-0.015" MAX WIRE capacity, 9/32" max coil diameter, S/N 120090WS (CI)
• WAFIOS FS4 conventional spring coiling machine with max 0.8MM-3.6MM wire diameter capacity, 40MM max coil diameter, 600V/3PH/60HZ, S/N 2 2056 101 (CI)
• WAFIOS F0A4 conventional spring coiling machine, S/N 2 2308 095 (CI)

WIRE FORMING MACHINES

• ITAYA MCS-15D CNC wire forming machine, S/N 4610 (CI)
• NILSON S-00 4-slide wire forming machine with conventional controls, 100-400 SPM capacity, roll straightener, 575V/3PH/60HZ, S/N 70521 (CI)
• NILSON MODEL 1 4-slide wire forming machine with conventional controls, 3/32" wire capacity, uncoiler & straightener/feeder, 575V/3PH/60HZ, S/N 88040 (CI)
• (2) NILSON MODEL 1-F 4-slide wire forming machine with conventional controls, 1/8" max wire capacity, uncoiler & straightener/feeder, 575V/3PH/60HZ, S/N 97550, 79030
• NILSON MODEL S-1F 4-slide wire forming machine with conventional controls, 3/32" wire capacity, uncoiler & straightener/feeder, 575V/3PH/60HZ, S/N 104860 (CI)
• NILSON MODEL 2-F 4-slide wire forming machine with conventional controls, 1/8" max wire capacity, uncoiler & straightener/feeder, 575V/3PH/60HZ, S/N 83525 (CI)
• CARL HACK ASF 4B 4-slide wire forming machine with BERG chiller and compliment of tooling & accessories, S/N 4104 (CI)
• WAFIOS FUD 41 conventional compression spring wire forming machine, S/N 2 2140 027 (CI)
• NILSON manual 4-slide wire forming machine, S/N N/A (CI)

SPRINGFORMING

• ASAHI-SEIKI NSF-2U CNC spring forming machine with ASAHI-SEIKI CNC control, S/N 90549 (CI)
• WAFIOS ASF 2/b conventional spring forming machine, 575V/3PH/60HZ, S/N 2 5173 064 (CI)
• (2) OHIO GEAR custom rack & pinion type springformers, S/N N/A (CI)

SPRING GRINDERS

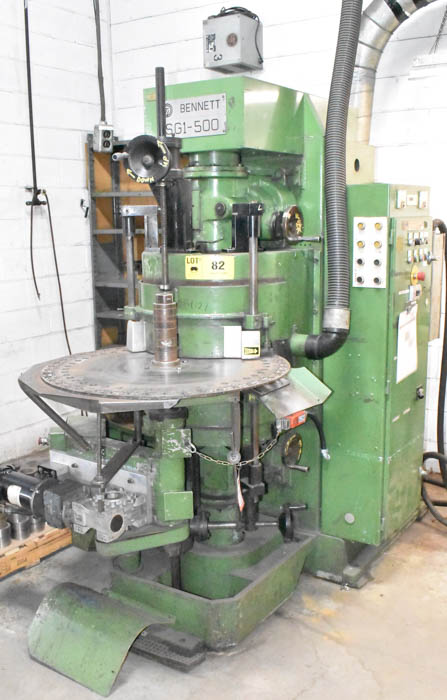

• BENNETT SG1-500 rotary-type spring grinder, S/N 77009 (CI)
• OMD MA7P rotary-type spring grinder, S/N 2878821 (CI)
• BENNETT SG-1-14 rotary-type spring grinder, S/N 5064 (CI)

POWERED UNCOILERS

• MECON 15MDC 1,500 LB capacity powered payout uncoiler, S/N 158712 (CI)
• LITTELL MODEL 20-18 powered uncoiler with 2,000 LB X 18" capacity, 575V/3PH/60HZ, S/N 77879-70 (CI)
• SCHAFF X15893-KD portable payout uncoiler, S/N N/A (CI)
• (30) MFG UNKNOWN powered payout uncoilers, S/N N/A (CI)
• LION PRECISION payout powered uncoiler, S/N N/A (CI)
• HTC powered payout uncoiler, 220V/1PH/60HZ, S/N 2118 (CI)
• COILMASTER SR-60 powered payout uncoiler, S/N N207111 (CI)
• WAFIOS AHL 3 powered payout uncoiler, S/N 2 7879 072 (CI)
• SECO powered payout uncoiler, S/N N/A (CI)
• VOGEL TYPE 2518 powered payout uncoiler, S/N 1290230 (CI)

CONVENTIONAL MACHINERY

• EX-CELL-O TYPE 602 vertical turret milling machine with 9" X 36" table, speeds to 4,000 RPM in two ranges, NEWALL 2-axis DRO, 575V/3PH/60HZ, S/N 6026042 (CI)

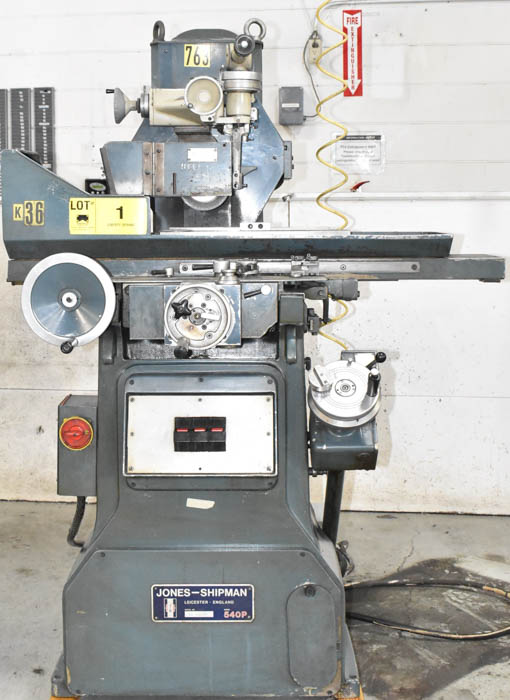

• JONES & SHIPMAN 540P conventional surface grinder with ECLIPSE 6" X 18" magnetic chuck, PGL optidress optical precision grinding attachment, 6" wheel, incremental downfeed, 6KVA/600-480V/3PH/60HZ transformer, S/N B093262 (CI)
• EX-CELL-O TYPE 602 vertical turret milling machine with 9" x 36" table, speeds to 4,000 RPM in two ranges, NEWALL 2-axis DRO, 575V/3PH/60HZ, S/N 6021117 (CI)
• FIRST LC-1 1/2 VS vertical turret milling machine with 9" x 42" table, speeds to 4,200 RPM infinitely variable, HEIDENHAIN 2-axis DRO, 575V/3PH/60HZ, S/N 90926421 (CI)

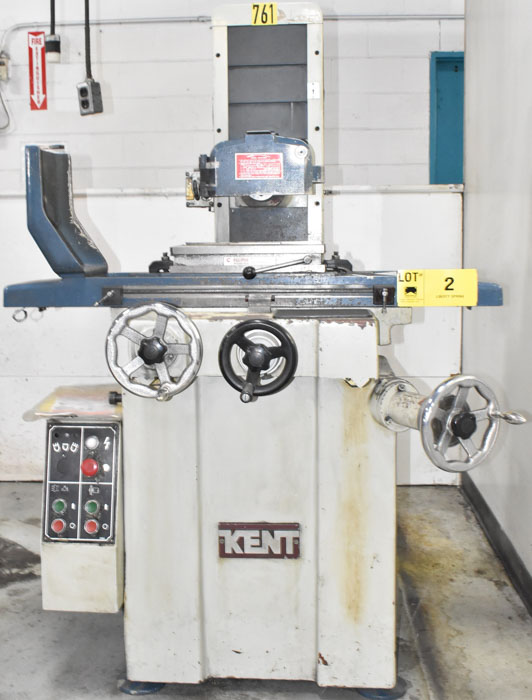

• KENT KGS-200 conventional surface grinder with ECLIPSE 6" X 12" magnetic chuck, 575V/3PH/60HZ, S/N 94051042 (CI)
• E-R MAIER KM1012 10" roll-in bandsaw, 120V/1PH/60HZ, S/N N/A (CI)
• FABIAN 10" roll-in bandsaw, S/N N/A (CI)
• ALCECO 6-1P bench-type mechanical punch press, S/N 639
• WJ BAXENDALE OBI mechanical punch press, S/N N/A (CI)
• (3) MFG UNKNOWN custom pneumatic punch presses, S/N N/A (CI)
• (6) MFG UNKNOWN custom kick punch presses, S/N N/A (CI)
• 10" hand shear, S/N N/A
• DIA-ACRO manual bender, S/N 1-1235 (CI)
• SAMPSON LA-4160 48" box and pan brake, S/N 196261 (CI)
• CLAUSING 2276 heavy-duty floor-type drill press, 575V/3PH/60HZ, S/N 5240391 (CI)
• FORD-SMITH 41-P heavy-duty double end pedestal grinder, S/N N006
• BALDOR 3/4 HP 8" double end pedestal grinder, 115-230V/1PH/60HZ, S/N N/A (CI)
• (2) BALDOR 6" heavy-duty double end grinders, S/N N/A
• WILTON 6" double end bench grinder, 110V/1PH/60HZ, S/N N/A

WELDING

• LINCOLN ELECTRIC IDEAL ARC 250 ARC welder with cables and gun, S/N N/A
• STIERLI 12 TON capacity bull-worker hydraulic bender, S/N N/A (CI)
• NIKO 35 KVA resistance welder, S/N 0201-1224
• LINDE V1-400 MIG welder with cables & gun, S/N N/A

FACTORY SUPPORT EQUIPMENT

• HANG ZHOU RJC20/C 25 KW capacity continuous through-type heat treat oven with 10" x 4" aperture, 500 DEG C. max temperature, S/N 2001112605 (CI)
• INDUSTRIAL HEATING EQUIPMENT FURNACE N6 natural gas fired continuous through-type heat treat oven with 32" x 8" aperture, S/N P4577
• HUEI SHANG HB-850 30 KW capacity portable heat treat oven, 600V/3PH/60HZ, S/N A60019 (CI)
• NEW ENGLAND CA1000 50 KW capacity heat treat oven, S/N N/A (CI)
• CHROMALOX heat treat oven, S/N N/A
• MPTECH single wheel tumble blaster, S/N 0302-A
• MPTECH cartridge type media recovery system, S/N N/A (CI)
• (2) SSTBLAST-0018-00 single wheel tumble blasters with cyclonic-type media recovery, S/N SST-1000-30-SH05, SST-1000-30-SH06
• (2) CONCEPT AIR cyclonic-type dust collectors, S/N N/A (CI)
• BAIRD 8F1790 22" X 22" tumble cleaner, S/N N/A (CI)
• KRAEMER portable bag-type dust collector, S/N N/A
• LION PRECISION stainless steel sorting chute, S/N N/A
• HTC high-speed looper, S/N N/A (CI)
• MFG UNKNOWN straightener/feeder, S/N N/A (CI)
• AIS bowl feeder, S/N N/A
• (5) hydraulic pallet jacks

ALSO:

• (140+) 36" x 24" x 20" automotive style steel bins; machine vises; rotary tables; angle plates; tooling & accessories; wire coils & spools; transformers; high-boy cabinets; shop tables; tools; pneumatic cylinders; hardware; electrical supplies; cardboard packaging & MUCH MORE!
