CHART cryogenic bulk storage tank system

$50,000 $SOLD

  • Product Details
  • Additional Information
  • Contact Us

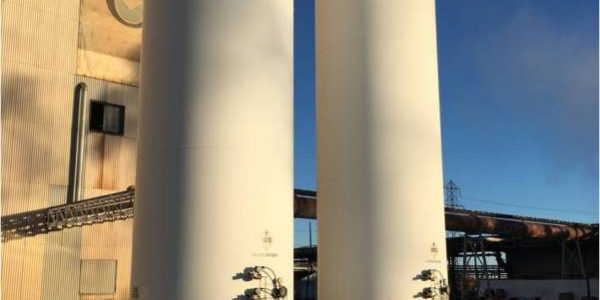

CHART VS-13000 large capacity cryogenic bulk storage tank system with 26,000 GAL total storage capacity

SPECIFICATIONS:
Serial Numbers: 19075 & 18966

(2) CHART VS-1300-NC-250 vertical bulk storage tanks with 13,000 GAL ea. capacity
250 PSIG MAWP
52,000 LBS ea. empty weight
177,100 LBS ea. liquid Oxygen full weight
140,600 LBS ea. liquid Nitrogen full weight
204,700 LBS ea. liquid Argon full weight
250 PSIG inner vessel MAWP
264 PSIG max inner vessel design pressure
-320 to +100 DEG F inner vessel design temperature
SA553 9% Nickel Steel inner vessel construction
CGA-341 full vacuum outer vessel
-20 to +300 DEG F outer vessel design temperature
A36 Carbon Steel construction with vacuum and multi-layer insulation
3.5" pump out port, 114" outer vessel diameter
102" inner vessel diameter
465" tank height
465" x 114.2" x 114.2" shipping dimensions
52,000 LBS ea. shipping weight

ALSO:
(2) THERMAX H21 electric vaporizers with 120 KW capacity each, 25 TONNES Liquid Oxygen per Hour capacity each, 30,000 SCFH capacity each, s/n: T-3858 & T-3858-2

NOTE:
Located in Thompson, Manitoba, Canada

Category: Tanks
Sub-Category: Oxygen
MAKE: CHART
MODEL: VS-13000
LOCATION: Thompson, MB, Canada
CURRENCY: USD
REF#: 70018
