Duchesne Lac-Megantic Inc.

Multi-Axis & Late Model Stone Working Event!

FEATURING: OMAG (2015) BLADE5NC 5-axis CNC bridge type vertical machining center with milling, shaping, polishing and contouring capability; MICHELETTI (2014) COUNTOUR PLUS 5AX CNC 5-axis diamond wire profiling saw; QD ROBOTICS SOLUTION (2013) 6-axis robotic profiling system w/ 50,000 KG CNC rotary table; THIBAUT (2002) T108L multifunction stone working center; OMAG (2000) CN94TE CNC lathe; OMAG (2000) 88SL semi-automatic conventional polishing lathe; TESIMAS (2014) ALD60*120F30*5 compact wastewater treatment system; MLE (2014) 50 TON capacity double girder top running overhead bridge crane; OMAR (2015) S7010 pick & carry mobile outdoor diesel crane with 70 TON capacity (ONLY 400 HOURS); OMAR (2013) S1210 pick & carry mobile outdoor diesel crane with 12 TON capacity (ONLY 1000 HOURS); GALIZIA (2013) MULTIS 636 electric multifunction telehandler with 6 TON capacity; ADMIRAL MODEL 28 electric ride-on type floor scrubber; (2) HYSTER E50XN-33 4500 LBS capacity electric forklifts; OPEN TECHNOLOGIES REVENG QUAD optical 3D scanner; SEALED AIR (2017) INSTAPAK 901 expanding foam-in-place packaging system; FICKERT & WINTERLING ASP 120W ATVR automatic grinding and polishing machine head; LARGE SELECTION OF: NICOLAI and ADI diamond grinding and polishing tools; diamond saw blades and arbors; OMAG 32.5" diameter saw head;(50+) #50 taper tool holders with milling, engraving and polishing tools; KODIAK 2500PSI gas powered portable pressure washer; KEMEX strapping caddy; MLRCH aluminum rolling A-frame rack; (3) METALTECH rolling scaffolds; toolboxes with hand tools; (2) wired crane pendant controls, MASTERCRAFT and LINCOLN ELECTRIC power tools; KAF jig hack saw; toolbox with clamping; wrenches; (2) POWER FIST portable electric mortar/cement mixers; late model computers and IT equipment, WURTH cabinets racks with spare parts, lifting, rigging supplies and MUCH MORE!

Rigging and Removal Details

THE EXCLUSIVE MACHINERY AND EQUIPMENT RIGGER FOR THIS SALE IS:
Montreal Rigging
Rob Marleau  |  C: 514-781-0404  |  rob@montrealrigging.com
Don Marleau  |  C: 514-949-7138  |  can_am2001@yahoo.com

Trucking and transport services, including cross-border logistics, are available through Fuze Logistics Inc. Please contact Chris Tan for a firm quote or any questions regarding transportation.

Fuze Logistics Services Inc.
Chris Tan
941-702-3310
machinerylogistics@fuzelogistics.com

5-AXIS CNC VERTICAL MACHINING CENTER

• OMAG (2015) BLADE5NC 5-axis CNC bridge type vertical machining center with milling, shaping, polishing and contouring capability, OMAG FLEXIUM HMI WINDOWS PC based CNC control, 86.60" x 147.25" table, travels X- 141.73", Y- 98.42", Z- 47.24", B- +/- 200 degrees, C- 140 degrees, spindle speeds to 7,000 RPM, 33.50HP spindle drive motor, #50 spindle taper, 12-station ATC tool rack, head changer rack, auto lube, up to 40 L/MIN water consumption, wash down, full splash enclosure with doors, s/n M1455 (CI)

5-AXIS CNC DIAMOND WIRE PROFILING SAW

• MICHELETTI (2014) COUNTOUR PLUS 5AX CNC 5-axis diamond wire profiling saw with KWEZI OSAI PROCESS CONTROLLER WINDOWS PC based CNC control, 98.42" x 61.02" max cutting capacity, +/- 78.74" cross rail vertical travel, 88.5" x 88.5" table, 20 TON max table capacity, 141 FT/SEC diamond wire speed, 20 HP drive motor, auto lube system, water nozzles, s/n 14 KS 01 (CI)

6-AXIS 3D ROBOTIC PROFILING MACHINE

• QD ROBOTICS SOLUTION (2013) 6-axis robotic profiling machine consisting of: KUKA (2013) KR 500 L480-3 F-MT 6-axis 3-D profiling robot with KUKA KRC4-NA controller, KUKA SMART PAD touch screen teach pendant control, 500Kg max payload capacity, +/- 1800 LBF capacity within working envelope, QD ROBOTICS SOLUTION #50 taper milling head attachment, TS 30 tool presetting touch probe, cables, controls and integration, s/n 225936; QD ROBOTICS SOLUTION (2013) 62" diameter CNC indexing rotary table with 50,000 KG table loading capacity, s/n n/a; QD ROBOTICS SOLUTION (2013)  #50 taper 14-station ATC tool holder rack, s/n n/a; controls and integration, s/n n/a

MULTI-FUNCTION STONE WORKING CENTER

• THIBAUT (2002) T108L multifunction stone working center with THIBAUT touch screen PLC control, 38" x 117" table, spindle speeds to 10,000 RPM, BT40 spindle taper, 7 HP spindle drive, 120" x 50" x 11" max work piece dimension, capable of drilling, edging, edge profiling, milling, polishing, sawing operations, s/n 450

CNC COLUMN & BALUSTER PROFILING LATHE

• OMAG (2000) CN94TE CNC lathe with OMAG NUM CNC control, 27.55" max turning diameter, 78.74" max turning length, 19.69" diameter saw head with speeds to 2900 RPM, #40 taper milling spindle with speeds to 1430 RPM, C-axis spindle speeds to max 250 rpm, hydraulic tailstock, coolant, s/n 624 (CI)

GRINDING & POLISHING LATHE

• OMAG (2000) 88SL semi-automatic conventional polishing lathe with 19.68" swing, 47.24" max distance between centers, manual tool post, coolant, s/n 632

PICK & CARRY MOBILE CRANES

• OMAR (2015) S7010 pick & carry mobile outdoor diesel crane with 70 TON capacity, 60' max vertical reach, 52.6' max height under the hook, 3-stage boom, hydraulic system, DEUTZ diesel engine, ALLISON automatic transmission, multi camera system, approx. 379 HRS recorded on meter at the time of listing, full cab enclosure with WEBASTO diesel heater, missing glass cab door, s/n 0867
• OMAR (2013) S1210 pick & carry mobile outdoor diesel crane with 12 TON capacity, 27.5' max vertical reach, 3-stage boom, hydraulic boom extension, third valve, auto levelling hydraulic system, camera system, approx. 1025 HRS recorded on meter at the time of listing, full cab enclosure with heat, OMAR 3500 KG capacity spreader boom attachment, s/n 0815

OVERHEAD BRIDGE CRANE

• MLE (2014) 50 TON capacity double girder top running overhead bridge crane with R&M SX70 hoist, approx. 56.50' span, 26' height under the hook, 2.1-12.5 FT/MIN lifting speed, 65 FT/MIN hoist variable speed, 100 FT/MIN bridge variable speed, wireless pendant remote control, class "C", s/n MLE-127

MULTI-FUNCTION TELEHANDLER

• GALIZIA (2013) MULTIS 636 electric multifunction telehandler with 6 TON capacity, 19.5' max vertical reach, 3-stage boom, digital load monitor with safety cut-off, joystick control, full operation wireless remote control, auto levelling hydraulic system, 48V battery, camera system, full cab enclosure with heat, approx. 765 HRS recorded on meter at the time of listing, GALIZIA LOGISTIC fork attachment, GALIZIA swing fork attachment, GALIZIA bucket attachment, GALIZIA man lift bucket attachment, GALIZIA boom extension attachment, (ATACHMENTS MAY BE OFFERED SEPARATELY) s/n 13/MULTIS 636/005

ROLLING STOCK & FORKLIFTS

• ADMIRAL MODEL 28 electric ride-on type floor scrubber with charger, 0045 HRS recorded on meter at the time of listing, s/n n/a
• HYSTER E50XN-33 4500 LBS capacity electric forklift with 189" max vertical reach, 3-stage mast, cushion tires, 48V battery, approx. 24,500 HRS recorded on meter at the time of listing, s/n A268N08288K
• HYSTER E50XN-33 4500 LBS capacity electric forklift with 189" max vertical reach, 3-stage mast, cushion tires, 48V battery, approx. 24,900 HRS recorded on meter at the time of listing, s/n A268N08289K
• EXIDE GOLD WG3-24-865 48V automatic forklift battery charger, s/n DC115781
• EXIDE GOLD WG3-24-865 48V automatic forklift battery charger, s/n DC115779
• BATTELEC 48V forklift battery, s/n n/a
• BATTELEC 48V forklift battery, s/n n/a

3D OPTICAL SCANNER

• OPEN TECHNOLOGIES REVENG QUAD optical 3D scanner with MANFROTTO tripod and case, s/n OPTREV-Q-093

FACTORY EQUIPMENT

• TESIMAS (2014) ALD60*120F30*5 compact wastewater treatment system with 221 GAL/MIN max rated capacity, PLC control, decanter tank, flocculant system and filter press with sludge tank, pumps tanks and conveyors, VEHL dumping hopper,
• s/n 02 04 2000
• SEALED AIR (2017) INSTAPAK 901 expanding foam-in-place packaging system with digital microprocessor control, handheld gun, resin pumps, plastic roll and worktable, s/n 901-28519
• FICKERT & WINTERLING ASP 120W ATVR automatic grinding and polishing machine head, s/n XXX.02.019

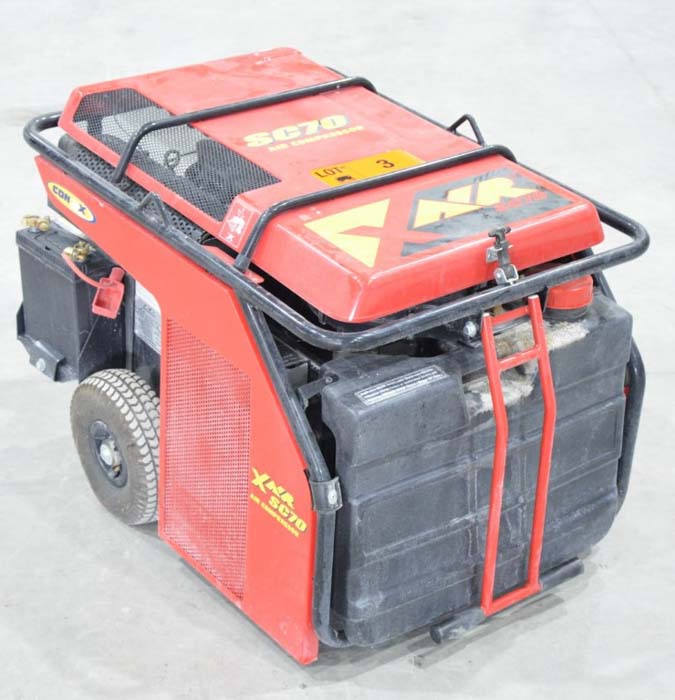

• XAR (2018) SC70 20HP gas powered rotary type air compressor with HONDA gas engine, 70CFM@100PSI capacity, 105HRS recorded on meter at the time of listing, s/n 0820181

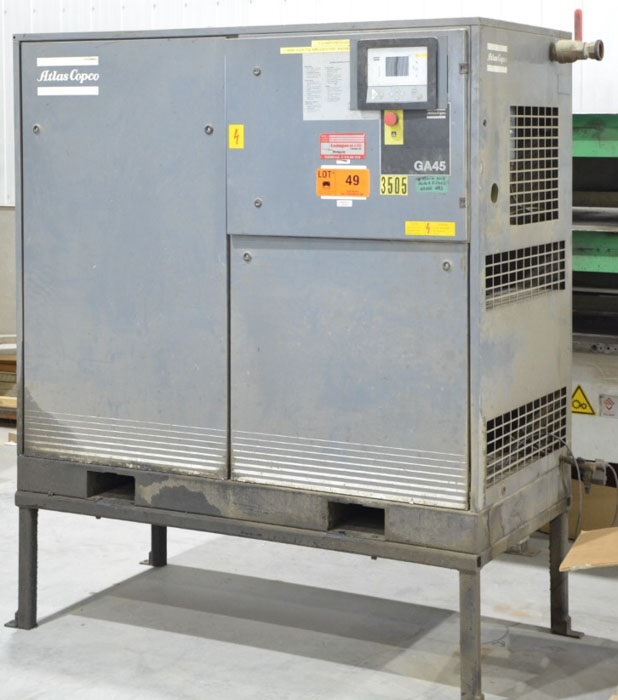

• ATLAS COPCO GA 45 60HP rotary screw type air compressor, s/n HOL021536

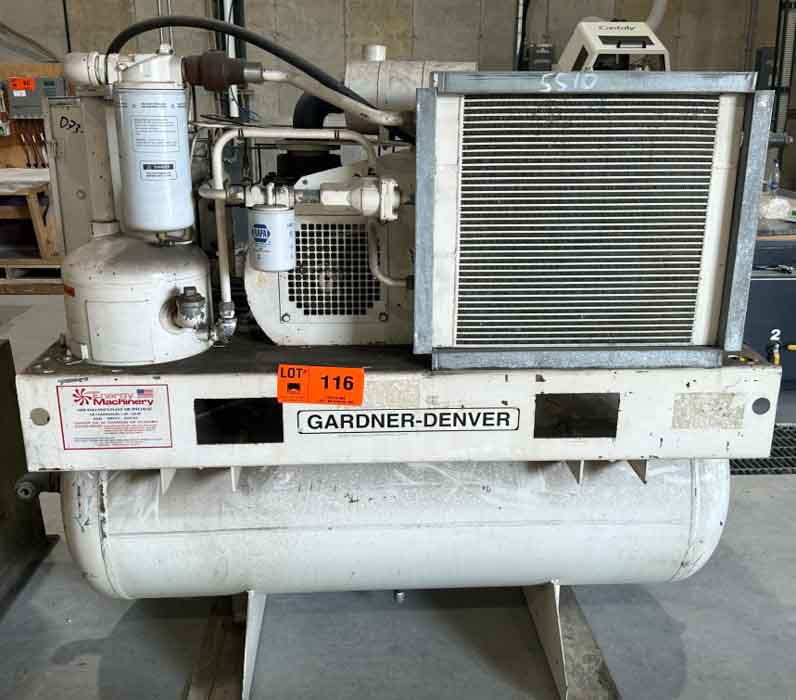

• GARDNER DENVER tank mounted piston type air compressor, s/n n/a
• MARCO portable sand blaster with hose and spare ceramic nozzles, s/n n/a
• VERSAMATIC (2005) E3PQ5T599 pneumatic diaphragm pump, s/n V954314
• VERSAMATIC (2005) E3PQ5T599 pneumatic diaphragm pump, s/n V954315
• ARO PD20A-AAP-GGG-B pneumatic diaphragm pump, s/n SPK1176192
• ARO PD20A-AAP-GGG-B pneumatic diaphragm pump, s/n SPJ2111138
• OCS (2018) JL-201 20TON x 10KG capacity digital crane scale, s/n 130508008
• WEHA (2015) TYPE 107991 plate lifter, s/n 10799115005
• MFG UNKNOWN plate lifter, s/n n/a
• RUSCH 10" horizontal band saw, s/n 6500 (CI)
• MICROCUT heavy duty hydraulic C-frame punch, s/n n/a
• MILLER GOLD STAR 350 portable welding power supply, s/n n/a
• LINCOLN POWER MIG 300 portable MIG welder with cables and gun, s/n n/a
• HOBART CYBERPRO 302 portable MIG welder with wire-feeder, cables and gun, s/n n/a
• HOBART CYBERPRO 302 portable MIG welder with wire-feeder, cables and gun, s/n n/a
• HOBART CYBERPRO 302 portable MIG welder with wire-feeder, cables and gun, s/n n/a
• JUNG (2013) JL 18 S 18,000KG capacity machinery moving dolly set, s/n 051800321
• JUNG (2012) hydraulic jack system with JUNG (2012) JPE5 electro-hydraulic power pack, (2) JUNG JH 10 G PLUS 10,000KG capacity hydraulic jacks, s/n n/a
• MLE SERVICES (2014) 5000KG x 120" spreader beam, s/n LHRC-5-10C
• ABACO ASB106MB 4545KG x 106" spreader beam, s/n 200313009
• ABACO ASB106MB 4545KG x 106" spreader beam, s/n 200313056
• MFG UNKNOWN 5' slip sling spreader beam, s/n n/a
• MFG UNKNOWN 5' slip sling spreader beam, s/n n/a
• DUCHESNE CUSTOM vacuum plate lifter, s/n n/a
• MFG UNKNOWN 6000LBS capacity fork crane hook attachment, s/n n/a

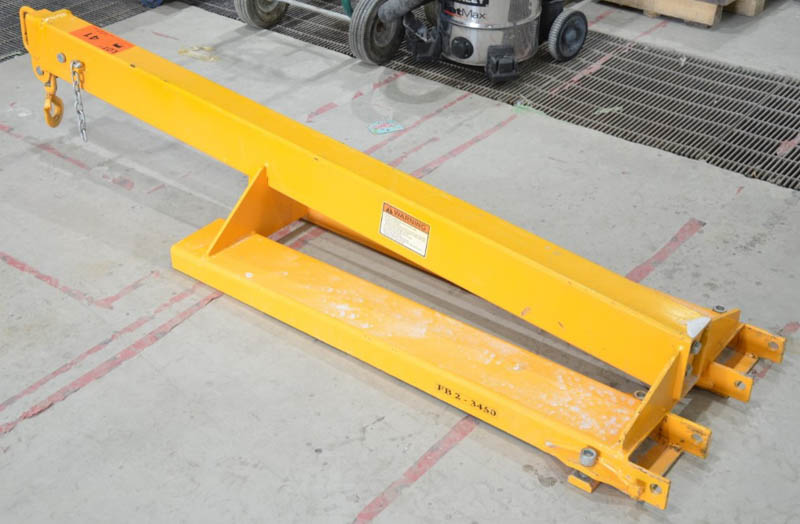

• AARDWOLF FB 2 - 3450 telescoping forklift boom attachment, s/n 001323
• KITO ER2-005IL 500 LBS capacity electric chain hoist with power trolley, wireless radio pendant control, 440v/3ph/60hz, s/n 070681
• KITO 3 TON capacity electric chain hoist with power trolley, s/n n/a

ALSO:

• LARGE SELECTION of NICOLAI and ADI diamond grinding and polishing tools; diamond saw blades and arbors; OMAG 32.5" diameter saw head;(50+) #50 taper tool holders with milling, engraving and polishing tools; KODIAK 2500PSI gas powered portable pressure washer; KEMEX strapping caddy; MLRCH aluminum rolling A-frame rack; (3) METALTECH rolling scaffolds; toolboxes with hand tools; (2) wired crane pendant controls; (4) water hose reel with hose; MILWAUKEE, MASTERCRAFT and LINCOLN ELECTRIC power tools; KAF jig hack saw; toolbox with clamping; wrenches; 48" X 96" heavy duty steel work table; (2) POWER FIST portable electric mortar/cement mixers; HAMMOND 75KVA/575-400-231V/3PH/60HZ transformer; MARCUS 45KVA/600-400-230V/3PH/60HZ transformer; OMAG 600-400V/3PH/60HZ transformer; WFI 75KVA/600-400V/3PH/60HZ transformer; LENOVO ULTRABOOK CORE i7 laptop; EXACQVISION ELP IPS-4000-ELPR rack mountable server; CORSAIR CORE i7 PC tower computer/server; MSI CORE i7 laptop; SAMSUNG ULTRABOOK CORE i5 laptop; CORSAIR CORE i7 desktop PC; TOSHIBA PENTIUM laptop; BROTHER MFCN multifunction printer copier; WURTH cabinets and racks with spare parts, lifting, rigging supplies and MUCH MORE!
