Surplus Assets of
AIP Industries Inc.
Low Usage & High Precision CNC Machining Facility
Date
Wednesday, June 12, 2024
Start Time
10:00 AM MDT
Inspection
Tuesday, June 11 from 9 AM to 4 PM MDT.
Removal
All assets must be removed no later than Friday, June 28 by appointment only. Rigging details to follow.
Industry
FEATURING: MORI SEIKI (2005) NH6300/50 twin pallet CNC HMC; NAKAMURA TOME (2005) WT250 multi-axis opposed spindle and twin turret CNC multi tasking center; LNS (2002) QUICKLOAD S3 CNC servo bar feeder; DOOSAN (2007) PUMA 400LB CNC turning center; OKUMA (2012) GENOS L440E CNC turning center; NAKAMURA TOME (2004) SC-300 CNC turning center; HAAS (2017) VF5/40XT CNC vertical machining center; HAAS (2006) VF2B CNC vertical machining center; (2) HAAS 4TH axis rotary indexing heads; LION C11MS gap bed engine lath; MODERN ML1440 gap bed toolroom lathe; MITUTOYO (2008) BRIGHT BRT710 CMM; STARK (2021) FBT20PSX-189 24V electric forklift, 4400lbs capacity; ALSO FEATURING: HUGE QTY of HSK and CAT 40 tool holders, precision tooling, turning center/lathe chucks ranging from 4” – 12”, large stock of lathe chuck jaws, KIRK machine vises, bench grinders, inspection equipment, LISTA style cabinets and benches, tool boxes, power tools, hand tools, tie-down equipment, pallet racking, shelving, office furniture & MUCH MORE!
Rigging and Removal Details
THE EXCLUSIVE MACHINERY AND EQUIPMENT RIGGER FOR THIS SALE IS:
Wingenback ltd.
Ryan Potter
C# 403-888-1144 • office# 403-221-8211 • ryanp@wingenback.com
*All assets must be removed no later than Friday, June 28 BY APPOINTMENT ONLY. Please contact Ryan Potter cell# 403-888-1144 or Email - ryanp@wingenback.com to arrange after invoice has been paid in full.
*Further information on removal details can be found in the Terms & Conditions tab or in the Lot Catalogue.
TRUCKING AND TRANSPORT SERVICES:
Trucking and transport services, including cross-border logistics, are available through Fuze Logistics Inc. Please contact Chris Tan for a firm quote or any questions regarding transportation.
Fuze Logistics Services Inc.
Chris Tan
941-702-3310
machinerylogistics@fuzelogistics.com
TWIN PALLET CNC HORIZONTAL MACHINING CENTER
- MORI SEIKI (2005) NH6300/50 twin pallet CNC HMC with FANUC MSX CNC control, (2) 24.8” X 24.8” 2640lbs capacity pallets, travels: X – 35.43”, Y – 31.5”, Z – 38.58”, 000.1 indexing, speeds to 10,000rpm, HSK100 spindle taper, 60 ATC, 30hp, coolant, MAYFRAN chip conveyor, COOLJET SYSTEMS pump s/n:H631EF0151
CNC MULTI TASKING CENTER
- NAKAMURA TOME (2005) WT250 multi-axis opposed spindle and twin turret CNC multi tasking center with FANUC SERIES 18i-tb CNC control, 9.84" swing over bed, 21.85” max turning length, KITIGAWA B208 8” hydraulic 3-jaw main spindle chuck, KITIGAWA B206 6” hydraulic 3-jaw sub spindle chuck,25hp main spindle, 14.75hp sub spindle, travels X1/X2 7.68”, Z1/Z2 23.62”, spindles speed to 4500rpm, (2) 12 station tool holders, coolant, chip conveyor s/n:M241105
BAR FEEDER
- LNS (2002) QUICKLOAD S3 CNC servo bar feeder s/n:302931
CNC TURNING CENTERS
- DOOSAN (2007) PUMA 400LB CNC turning center with FANUC SERIES 21i-TB control, KITIGAWA B15 15” hydraulic 3 jaw chuck, 27.55" swing over bed, 82.40" max turning length, 5.19" spindle bore, travels X- 14.25”, Z- 84.84”, 10 station turret, speeds to 2000 RPM, 35 hp spindle motor, coolant, TURBO SYSTEMS chip conveyor s/n: P35L3242
- OKUMA (2012) GENOS L440E CNC turning center with OKUMA 0SP-P200LA-R CNC control, KITIGAWA B210 10” hydraulic chuck, 20.47” swing over bed, 43.3” max turning length, 3.14” spindle bore, travels X- 9.05”, Y-45.03”, 12 station tool holder, speeds to 3000rpm, 15hp spindle motor, coolant, chip conveyor s/n: PE231
- NAKAMURA TOME (2004) SC-300 CNC turning center with FANUC SERIES 21T CNC control, KITIGAWA BB12 12” 3 jaw hydraulic chuck, 22.04” swing over bed, 23.62” max turning length, 3.34” spindle bore, travels X- 8.75”, Z- 25”, 12 station tool holder, speeds to 3500rpm, 15hp spindle motor, chip conveyor, coolant s/n: S308005
VERTICAL MACHINING CENTERS
- HAAS (2017) VF5/40XT CNC vertical machining center with HAAS CNC control, 62” X 23” t-slot table, travels X- 60”, Y- 26”, Z- 25”, 30hp spindle, speeds to 8100rpm, CAT40 taper, 24 ATC, coolant, chip conveyor s/n: 1138324
- HAAS (2006) VF2B CNC vertical machining center with HAAS CNC control, 36” X 14” t-slot table, travels X- 30”, Y- 16”, Z- 20”, 20hp spindle, speeds to 7500rpm, CAT40 taper, 20 ATC, coolant, chip conveyor s/n:1050388
- (2) HAAS 4TH axis rotary indexing head with 12”/8” 3 jaw hydraulic chucks, tailstocks s/n: n/a
CONVENTIONAL EQUIPMENT
- LION C11MS gap bed engine lathe with 24” swing in the bed, 30” swing in the gap, 119” in between centers, 16” 3 jaw chuck, 4” bore, speeds to 1400rpm, inch/mm threading, coolant, NEWALL 2 axis DRO, steady rests s/n: 19334
- MODERN ML1440 gap bed toolroom lathe with 14” swing in bed, 16” swing in the gap, 37” in between centers, 6” chuck, 1.5” bore, speeds to 2000rpm, inch/mm threading, coolant, FAGOR 2 axis DRO s/n: 0350305

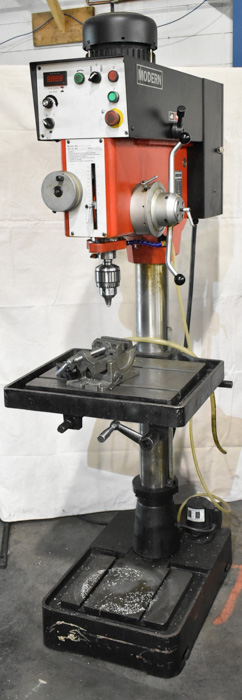

- MODERN (2015) DP925GAD-B gearhead drill with 18” X 15” t-slot table, 2hp motor s/n: F1502026
- ADVANCE RF916B horizontal band saw with 1.5hp, 9” throat s/n: 191231
- CRAFTEX CX103 horizontal band saw with 12” throat s/n: 12115347
CMM
- MITUTOYO (2008) BRIGHT BRT710 CMM with 64” X 38.5” granite table, measures 40” X 28” X 24, RENSHAW PH9A touch probe s/n: 0208705
SHOP EQUIPMENT
- STARK (2021) FBT20PSX-189 24V electric forklift, 4400lbs capacity, 188” max reach, 3 stage high visibility mast, sideshift, cushion tires, 178hrs (recorded on meter at time of listing) s/n: 5mh21000007
- KAESAR SX5 rotary screw compressor with 2664hrs (recorded on meter @ time of listing) s/n: 1015
- KAESAR SX4 rotary screw compressor with 22,374hrs (recorded on meter @ time of listing) s/n: 1001
- KAESAR TBH14 KRYOSEC refrigerated air dryer s/n: n/a
- NUAIRE NU602-400 laboratory exhaust hood s/n: 5171AAN
- GORBEL SS-99075 single beam free standing gantry crane system, DEMAG electric 2 ton hoist, 28’ span, 90’ length, all bolted construction
- MFG N/A 14’ A-frame rolling gantry with CM 2 ton capacity hoist s/n: n/a
- NUAIRE NU-602-400 laboratory exhaust hood s/n:5317IAAN
ALSO:
- PANNIER dot peen marking machine, huge quantity of HSK and Cat40 tool holders, tooling consisting of endmills, boring bars, lathe tooling, drills, carbide inserts, turning center tooling and holders, turning center/lathe chucks ranging from 4” – 12”, large stock of lathe chuck jaws, KIRK machine vises, bench grinders, inspection equipment consisting of outside/inside micrometers, bore gauges, thread gauges, Lista style cabinets and benches, tool boxes, power tools, hand tools, tie-down equipment, pallet racking, shelving, office furniture & MORE!
